Three-phase wet & dry
T22 L50
Product number: 4030500391
2,2 kW, tailored for metal production
_MD-ps-Original-CNEPLF.webp?width=768&rxy=0.5%2c0.5&format=webp)
_MD-ps-Original-CNEPNJ.webp?width=768&rxy=0.5%2c0.5&format=webp)
_MD-ps-Original-CNEPLF.webp?width=768&height=768&rxy=0.5%2c0.5&format=webp)
_MD-ps-Original-CNEPNJ.webp?width=768&height=768&rxy=0.5%2c0.5&format=webp)
T22 L50

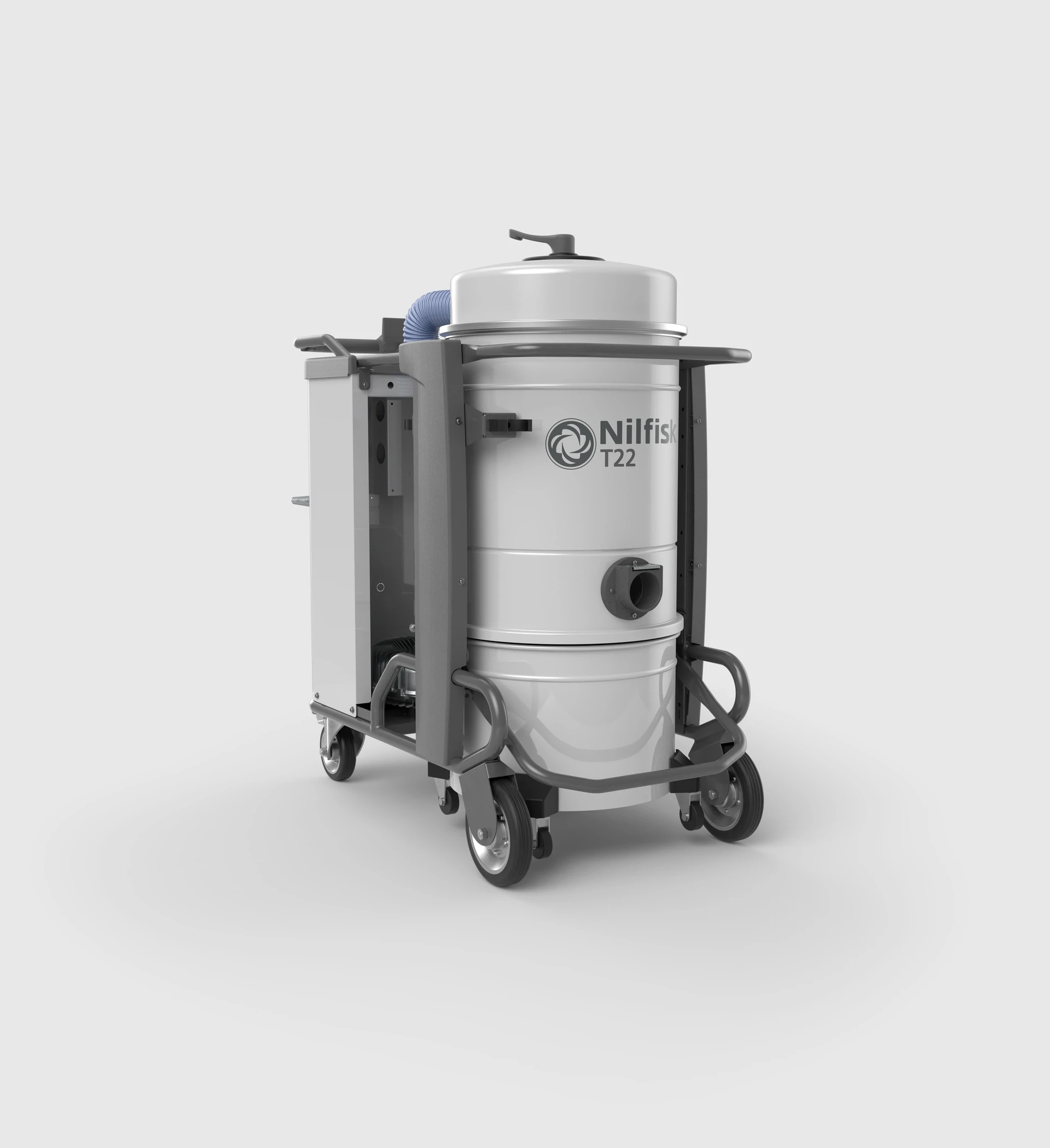

Model T22 is a threephase industrial vacuum for wet and dry material.
Brochures & documents for
Download print and video material to learn more
Accessories for T22 L50
Complete range of accessories
Tech install
Vac Nozzle Dry
AUTOBUS SUCKER D50 200 AL. COMPLETE
Product number: Z7 22170
Tech install
Vac Nozzle Dry
BRUSH D40 MM220 30 COMPLETE
Product number: Z7 22193
Tech install
Vac Nozzle Dry
BRUSH D40 MM220 90 COMPLETE
Product number: Z7 22042
Tech install
Vac Nozzle Dry
BRUSH D40 MM300 30 COMPLETE
Product number: Z7 22194
Tech install
Vac Nozzle Dry
BRUSH D40 MM300 90 COMPLETE
Product number: Z7 22043
Tech install
Vac Nozzle Dry
BRUSH D40 MM400 30 COMPLETE
Product number: Z7 22195
Tech install
Vac Nozzle Dry
BRUSH D40 MM400 90 COMPLETE
Product number: Z7 22044
Tech install
Vac Nozzle Dry
BRUSH D50 MM220 30 COMPLETE
Product number: Z7 22196
Tech install
Vac Nozzle Dry
BRUSH D50 MM220 90 COMPLETE
Product number: Z7 22038
Specifications for T22 L50
Voltage (V)400
Frequency (Hz)50
IP protection class55
Insulation classF
Rated power (kW)2.2
Airflow without hose (m³/h - l/m) 315 - 5250
Max. vacuum (kPa - mbar)30 - 300
Sound pressure level (dB(A))68
Container capacity (l)50
Main filter typePolyester Star Filter
Main filter area (cm²)19500
Upstream HEPA H14 filter (if present) (cm²) -
Inlet (mm)70
Length x width x height (mm)1130x600x1240
Weight (kg)111
CO2 emissions for “T22 L50”
Estimate your annual CO2 footprint based on weekly usage.
0 kg
CO2 per year
Different variants of T22 L50
Below you can see the different variants of the product
