Pneumatic conveyors
F_3VP0322-100A X
Product number: 4561700405

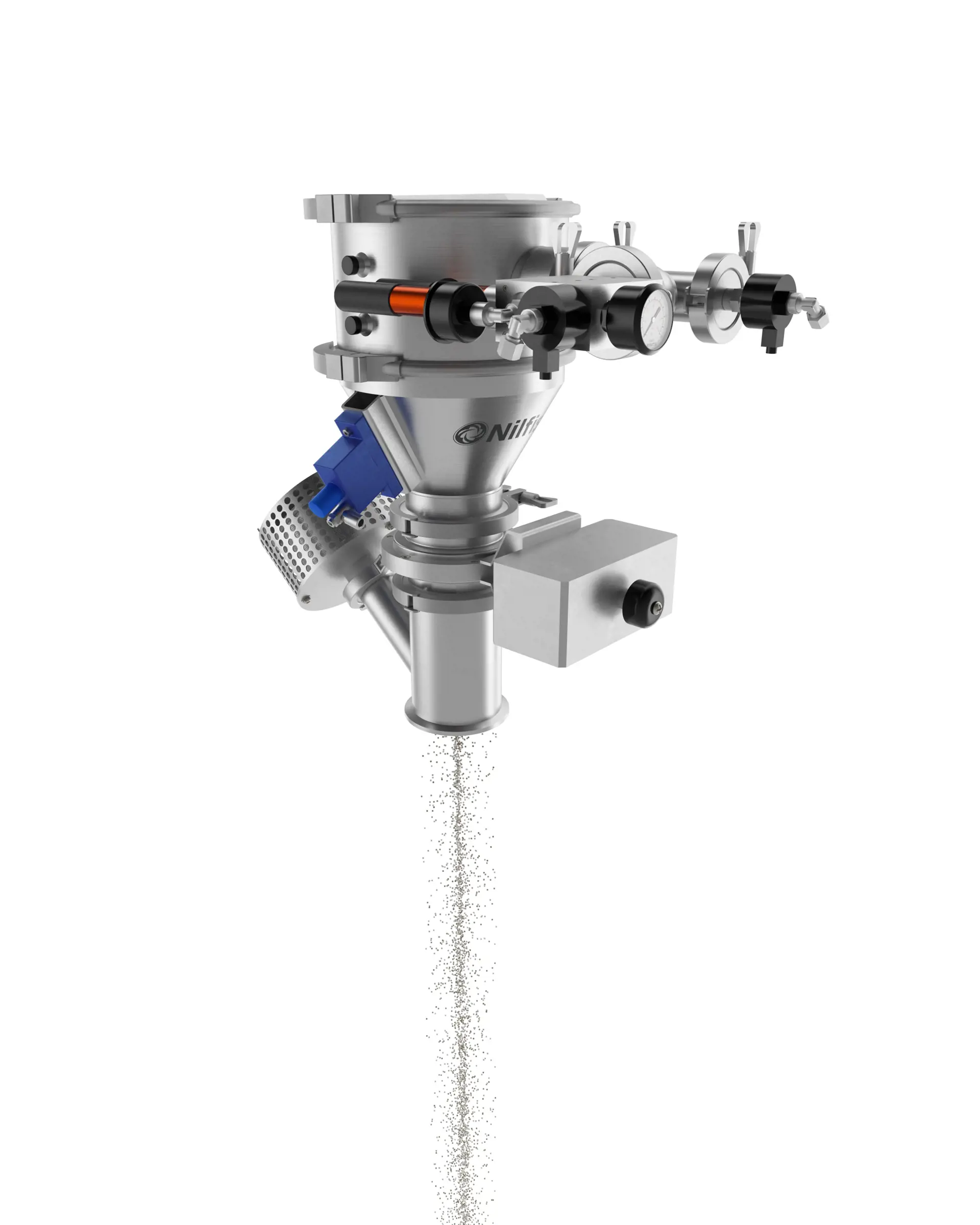

Nilfisk 3-Series: pneumatic conveyors for powder material processing
F_3VP0322-100A X
The 3-Series is a range of pneumatic conveyors designed to automatically feed process machines (such as capsule filling machines or tablet press with fine powders) and is available pneumatically (with two ejectors and three stages) or electrically driven.
Brochures & documents for
Download print and video material to learn more
Accessories for F_3VP0322-100A X
Complete range of accessories
Tech install
Extension Tube
F_PROBE NOZZLE D30 SS AISI 316
Product number: 4572200417
Tech install
Hose Vacuum Cleaner
F_PROBE HOSE D30 SS CROSS
Product number: 4572200490
Tech install
Hose and Connection
F_KIT EX FOOD HOSE 5MT D32
Product number: 4585900056
Tech install
Filter
F_FILTER CART. D125X130 3VT
Product number: 4581701612
Tech install
Filter
HEPA FILTER IVT1000CR SILICONE AUTOCLAVA
Product number: 80556300
Tech install
Filter
ULPA FILTER IVT1000CR
Product number: 80556500
Video
Specifications for F_3VP0322-100A X
Main filter typePTFE CLASS M
Main filter area (cm²)1200
Downstream HEPA filter H14 (if present) (cm²)2500
Inlet (mm)30
Required pressure (bar)5/6
Dimensions, L x W x H (mm)590 x 400 x 420
Weight - hopper (kg)17
Hopper Ø (mm)100
Different variants of F_3VP0322-100A X
Below you can see the different variants of the product
