Centralized vacuum systems
FDC0711CA6T11
Product number: 4587700444
Collect, filter and dispose up to 200 L of material
FDC0711CA6T11

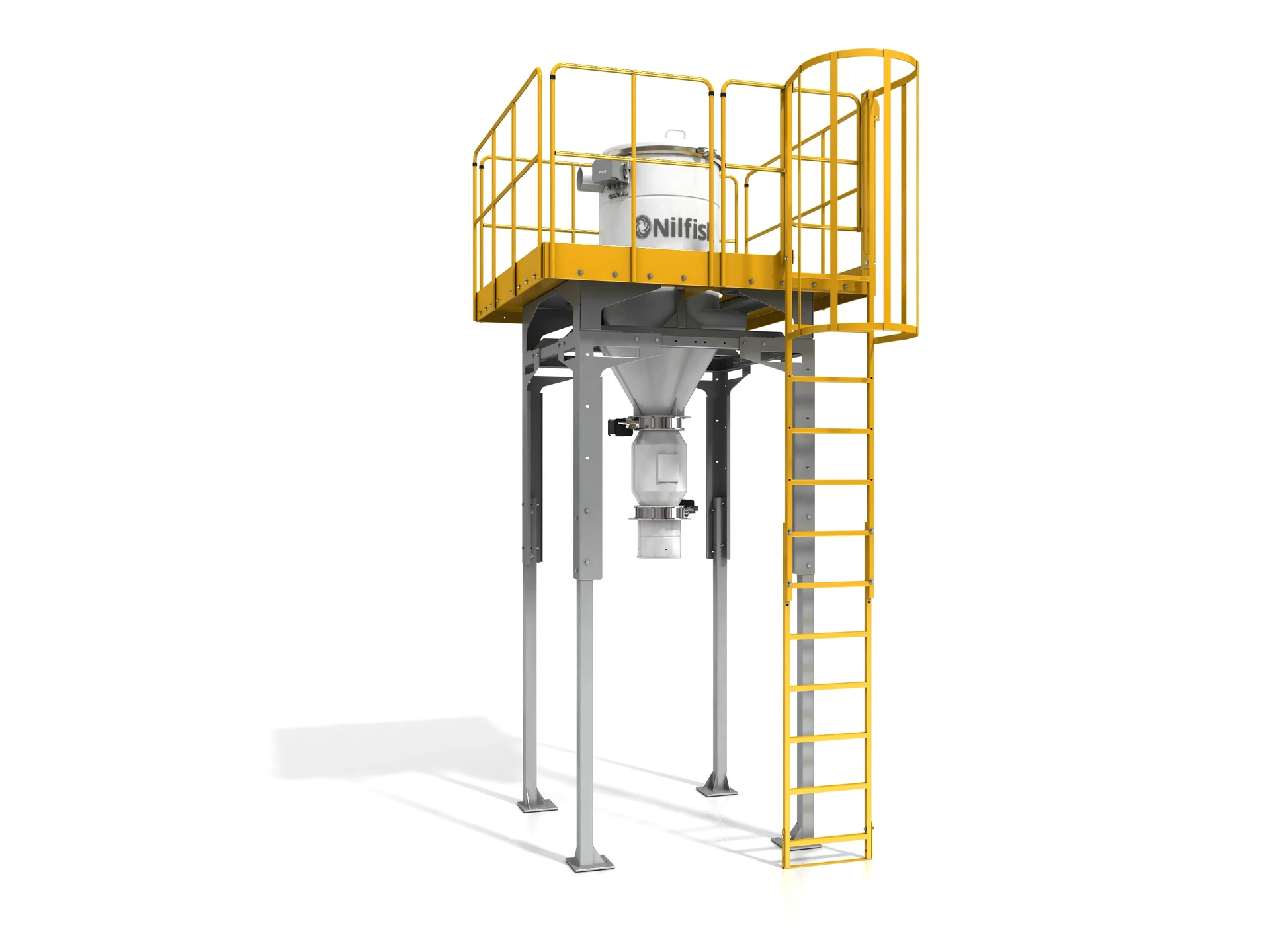

FDC is a Fixed Dust Collector and is the filtering stage in a CVS. The Centralized Vacuum System can be used to clean lines, floors and installations during or after working cycles, even continuously; more in general, it is a system able to supply, when necessary, an air flow at certain level of vacuum, for several utilities, even simultaneously, and reach long distances. FDC are also suitable everytime a centralized collection point for a fixed intallation is necessary
Brochures & documents for
Download print and video material to learn more
Accessories for FDC0711CA6T11
Complete range of accessories
27966094.ihtml?token=d7257b0b1f3b54d3dff45a55dd91d977&photo_id=27966094]]>
Specifications for FDC0711CA6T11
Voltage (V)24Vac/24dc
Frequency (Hz)50
IP protection class55
Max. vacuum (kPa - mbar)500
Sound pressure level (dB(A))97 (*peak)
Capacity (l)200
Filter area (cm²)110.000
Filter chamber Ø (mm)780
Level sensors n°2
Inlet (mm)150
Length x width x height (cm)1650x1600x4450
Weight (kg)350
Filter typePolyester antistatic Class M
Frame typeTelescopic frame for Big Bag
Discharge Typedouble pneumatic butterfly valve
Different variants of FDC0711CA6T11
Below you can see the different variants of the product
