Low speed
FM810 XP
Product number: 56105616
The Next Evolution of Advance Floor Machines

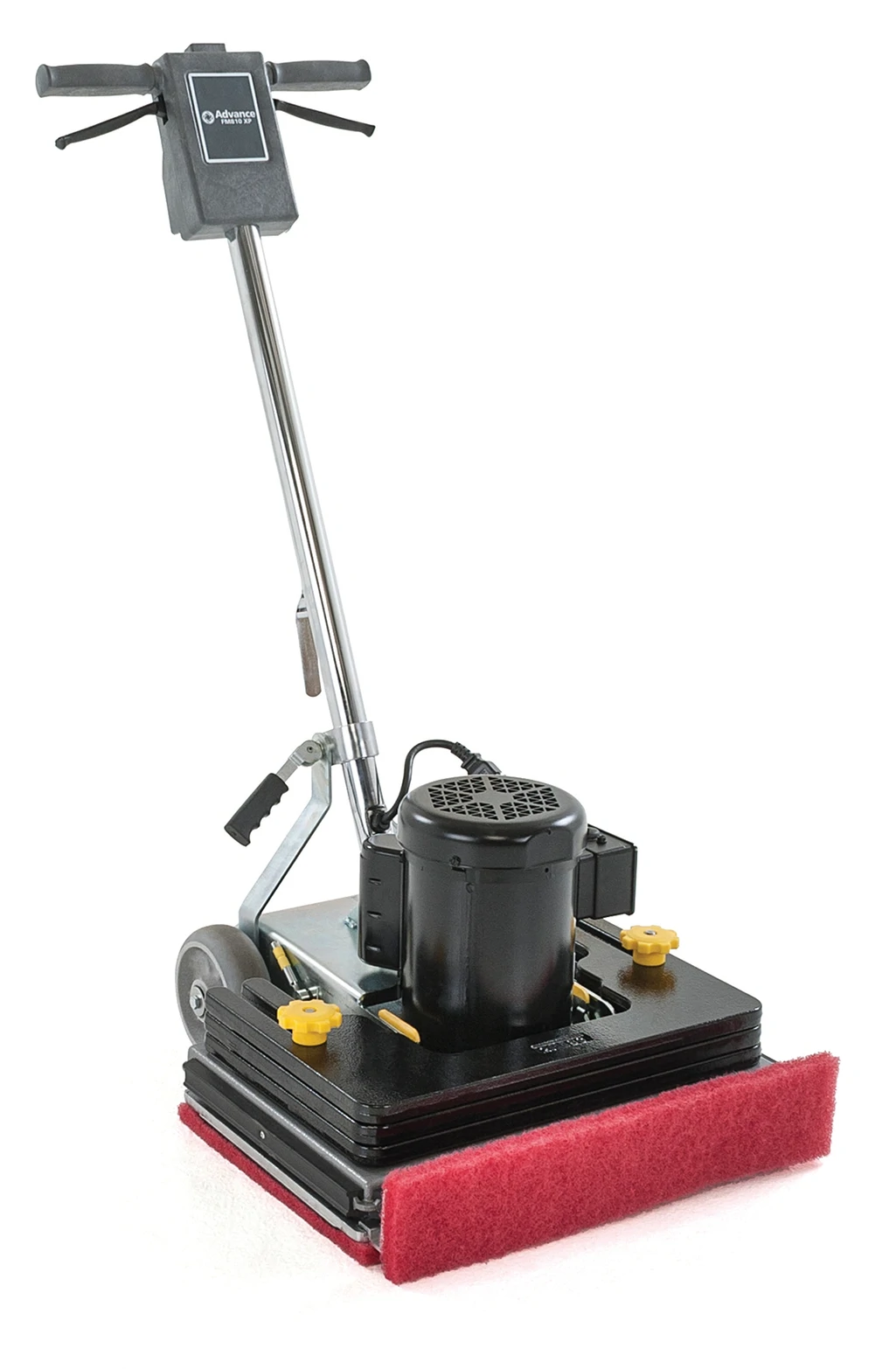

FM810 XP
The next evolution of Advance orbital scrubbing floor machines is here: the Advance FM810™.
Brochures & documents for
Download print and video material to learn more
Accessories for FM810 XP
Complete range of accessories
Tech install
Sanding Accessory
SCR SAND 14X20 80GRIT CS=10EA
Product number: 997101
Tech install
Sanding Accessory
SCR SAND 14X20 100GRIT CS=10EA
Product number: 997102
Tech install
Sanding Accessory
SCR SAND 14X20 120GRIT CS=10EA
Product number: 997103
Tech install
Pad
PAD-BRUSH-GREEN-14X20-4/CS
Product number: 56383923
Tech install
Pad
PAD-MAROON-14X20-10/CS
Product number: 56384453
Tech install
Pad Boost
PAD-BLACK-14X20-5/CS
Product number: 997022
Tech install
Pad Boost
PAD-BLUE-14X20-5/CS
Product number: 997021
Tech install
Pad Boost
PAD-MAROON-14X20-10/CS
Product number: 997024
Tech install
Pad Boost
PAD-RED-14X20-5/CS
Product number: 997020
Specifications for FM810 XP
Power cable ft. (m)50 ft (15 m)
Voltage/frequency (V/Hz)120 V / 60 Hz
Sound level68 dB A
Orbit diameter in. (mm)1/4 in (6.4 mm)
Orbit speed (RPM)3,540 rpm
Dimensions, L x W x H (cm)20 in x 20.5 x 44 in (50.8 cm x 52 cm x 112 cm)
Power cord - type14/3 Safety Yellow
Warranty3 Years Parts, 2 Years Labor
Cleaning pad size14 in x 20 in
Machine total weight169 lb (76.7 kg)
Machine without weights106 lb (48 kg)
Weights63 lb (28.5 kg)
Motor 1.5 hp (1.1 kW)
CO2 emissions for “FM810 XP”
Estimate your annual CO2 footprint based on weekly usage.
0 kg
CO2 per year
Different variants of FM810 XP
Below you can see the different variants of the product
