Large walk-behind scrubber dryers

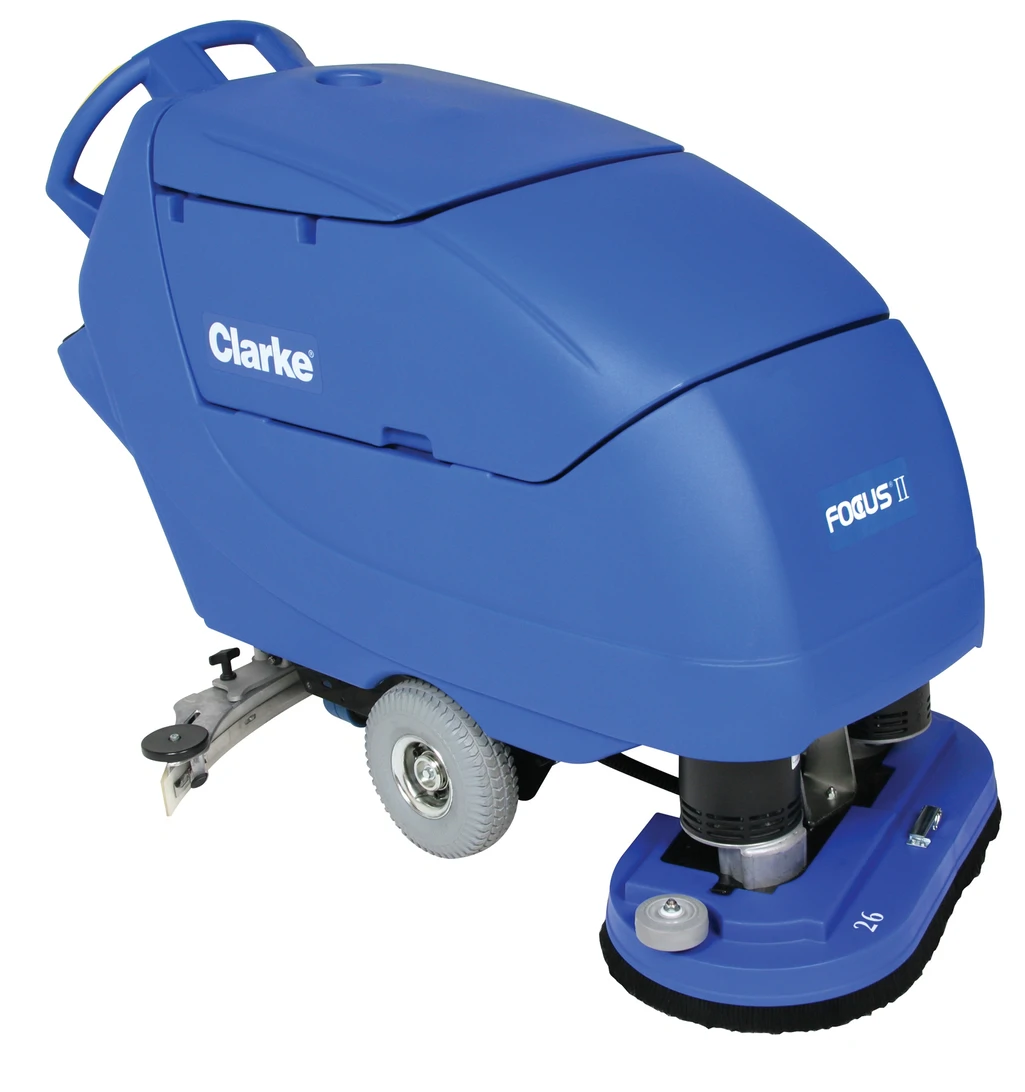

FOCUS II DISC26 312AGM
Product number: 05394A
Quietest scrubber in the industry
FOCUS II DISC26 312AGM
The Focus® II Mid Size scrubbers are powerful and responsive machines that are great for many applications! Popular models include the Focus II Boost 32, Focus II Disc 26 and other full-featured 28” to 34” rotary and cylindrical systems.
Brochures & documents for
Download print and video material to learn more
Accessories for FOCUS II DISC26 312AGM
Complete range of accessories
Tech install
Pad Holder
DRIVER PAD 13 GIMBAL
Product number: 38035A
Tech install
Disc Brush 330 mm
BRUSH LITE GRIT 13
Product number: 10382A
Tech install
Disc Brush 330 mm
BRUSH ASM GRIT 13 OD VIS V
Product number: 11440A
Tech install
Disc Brush 330 mm
BRUSH ASM NYLON 13 OD VIS V
Product number: 11437A
Tech install
-ps-WebsiteLarge-JLNNLUD.jpg)
Disc Brush 330 mm
BRUSH ASM CLEAN GRIT 13 ODVIS
Product number: 11439A
Tech install
Disc Brush 330 mm
BRUSH ASM POLYPROPLENE 13 ODV
Product number: 11438A
Tech install
Detergent Equipment
CHEMICAL MIXING KIT
Product number: 11363A
Tech install
Other
HOUR METER KIT
Product number: 11371A
Tech install
Other
SQUEEGEE ASSY 32.5
Product number: 10398A
Specifications for FOCUS II DISC26 312AGM
Battery power (V)24 V, (4) 6 V batteries, 242 Ah, 310 Ah wet or 312 Ah maint-free (AGM)
Sound level65 dB A
Dimensions L x W x H61 x 28 x 44 in
Vacuum motor power0.75 hp (550 W) 3 stage tangential discharge
Battery chargerOnboard, 24 V, 25 amp
Pad/Brush Size(2) 13 in (33 cm)
Solution flow0-1 gal/min (0-3.2 km/hour)
Brush pressure80 lb (36 kg) 150 lb 68 kg)
Squeegee width32.5 in (81 cm)
Brush motor power(2) 3/4 hp (0.56 kW) 200 RPM
Solution/recovery tank capacity23 gal (87 L) each tank / Rear fill with bucket or hose
WarrantyPolydur® Body - 8 Years, Parts - 3 Years, Labor - 1 Year, Battery 18 months pro-rated (1st 90 days unconditional)
Wheels(2) 10.24 x 3.35 in (260 x 85 mm) Light gray, non-marking, foam filled
Speed (forward/reverse)Forward: 0-260 ft/min (0-4.8 km/hour) / Reverse: 0-174 ft/min (0-3.2 km/hour)
Cleaning Grade6 degree incline
